QFS Manuelt Spjæld

QFS Damper bruges i Nordfabs QFS (forseglet) kanalværk, der kan anvendes i olietåge applikationer. QFS Rørsystem med O-ringe og pakninger, til Olietåger • QFS med pakninger og O-Ringe er et tæt rørsystem i Diameter fra Ø80mm til Ø400mm. Rørsystemet kan tilpasses uden at man behøver værktøj. • Systemet er lavet som standard i galvaniseret stål og kan laves i rustfrit stål til dagspris. Alle rørdele har lasersvejsede samlinger, Bøjninger og grenrør er tætnet med epoxi. • Quick-Fit™ spændebåndet med pakninger som mon¬teres mellem rørdelene, giver en øget sikkerhed mod lækager. En yderligere detalje, er at spændebåndet har en pakning monteret, som slutter tæt omkring rullekant og rørpakningen som er en ekstra sikkehed mod mulig lækage. Der medfølger en sikkehedssplit til at låse Spændebåndet med. ORDRE EKSEMPEL: Spjæld QFS Manuel 350QF

Kontakt os

Product Details

Products

Documents (0)

Models (0)

Video (0)

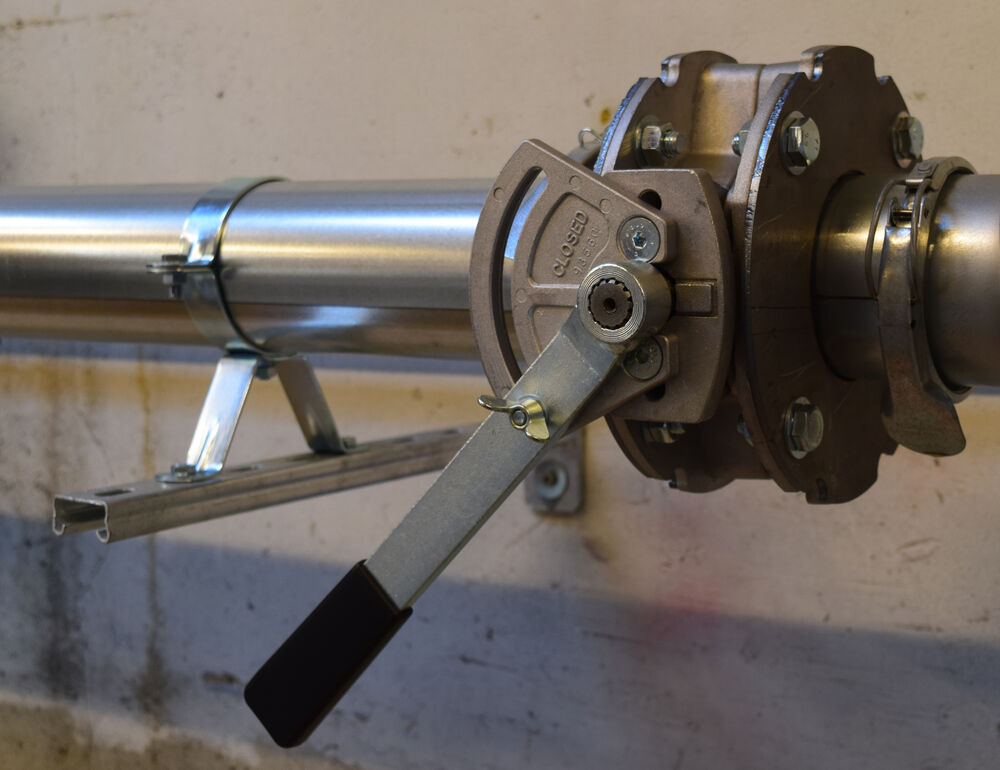

The Quick-Fit Sealed (QFS) Manual Damper is used in oil mist applications where it regulates airflow by closing extraction points on machinery and in workplaces not currently in use. Available in galvanised steel, ranging from 100 - 400 mm in diameter.

Quick-Fit Sealed (QFS) Ducting
Designed for machining and any other operations which create oil mists, Nordfab Quick-Fit Sealed (QFS) Ducting can significantly reduce risks of leakage from ducting. QFS features laser welded and caulked duct (solid seams eliminate leakage) and double sealing at duct connections. All bends, branches, reducers, and other products with joints or collars are epoxy caulked. When clipping the ductwork together, an additional nitrile gasket is placed between the parts to avoid leakage. The Quick-Fit Clip features a generously dimensioned sealing gasket held firmly in place by positive over-centre clamping action over the rolled collars at the duct ends to be joined. For added security, a locking pin may be inserted.

The world's fastest ducting
For most dust and fume collection requirements and applications, Nordfab Quick-Fit Sealed (QFS) modular clip-together ducting is a crucial component of dust collection, fume extraction, and process ventilation systems. It has the capability to significantly reduce installation time by up to 50%, resulting in cost savings and reduced downtime.

Easy to install
Quick-Fit Sealed is easy and quick to install, designed for effortless cleaning, and can be reused when adjusting facility layouts, providing one of the lowest life-cycle costs of any ducting product. The Quick-Fit rolled edges allow quick and easy connections with the Quick-Fit Sealed Clip when installing, extending, or taking apart runs of duct.
