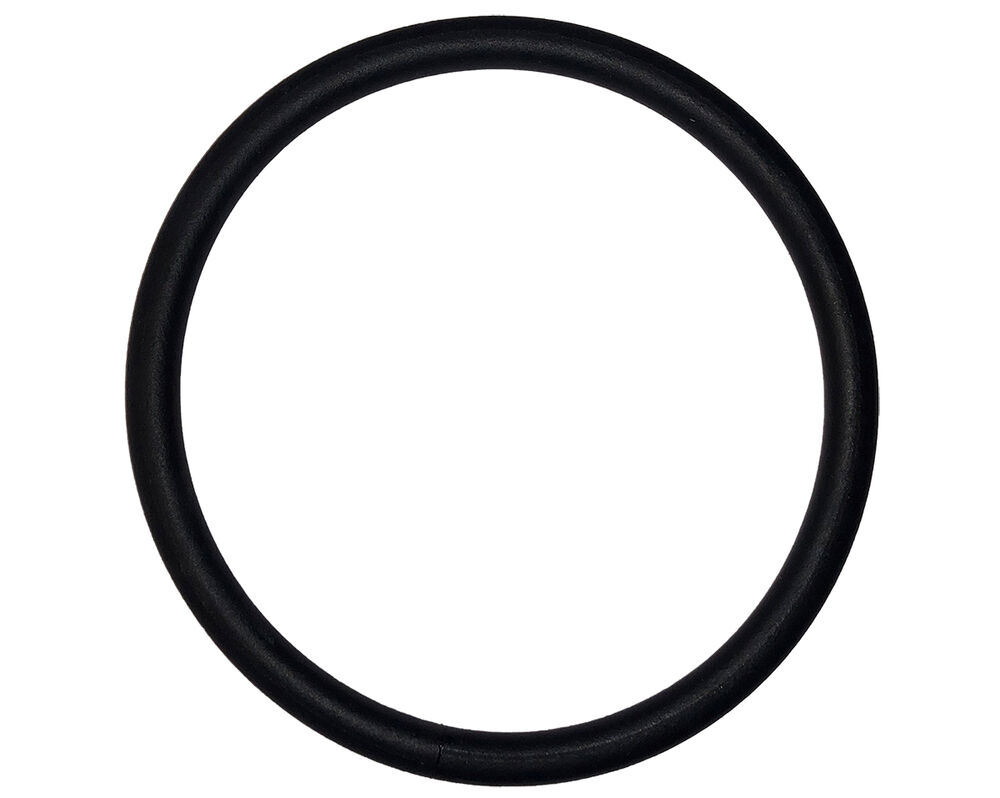

La junta tórica QFS™ se utiliza con el manguito Quick-Fit® en los sistemas de conductos sellados de Nordfab para garantizar un sellado hermético y evitar así las fugas. La junta tórica funciona bien con muchos aceites y productos químicos, y no se puede dañar al doblarla o torcerla. ø 3" a 24".

La junta tórica QFS™ se utiliza con el manguito Quick-Fit® en los sistemas de conductos sellados de Nordfab para garantizar un sellado hermético y evitar así las fugas.

⦁ Funciona bien con muchos aceites y productos químicos.
⦁ Rango de temperatura: -30 °F a +225 °F
⦁ No se puede dañar al doblar y torcer
⦁ Se utiliza junto con la junta tórica de manguito estándar de Nordfab; no lo reemplaza.

Obtenga más información sobre nuestros conductos sellados de ajuste rápido (QFS) para aplicaciones de neblina de aceite
