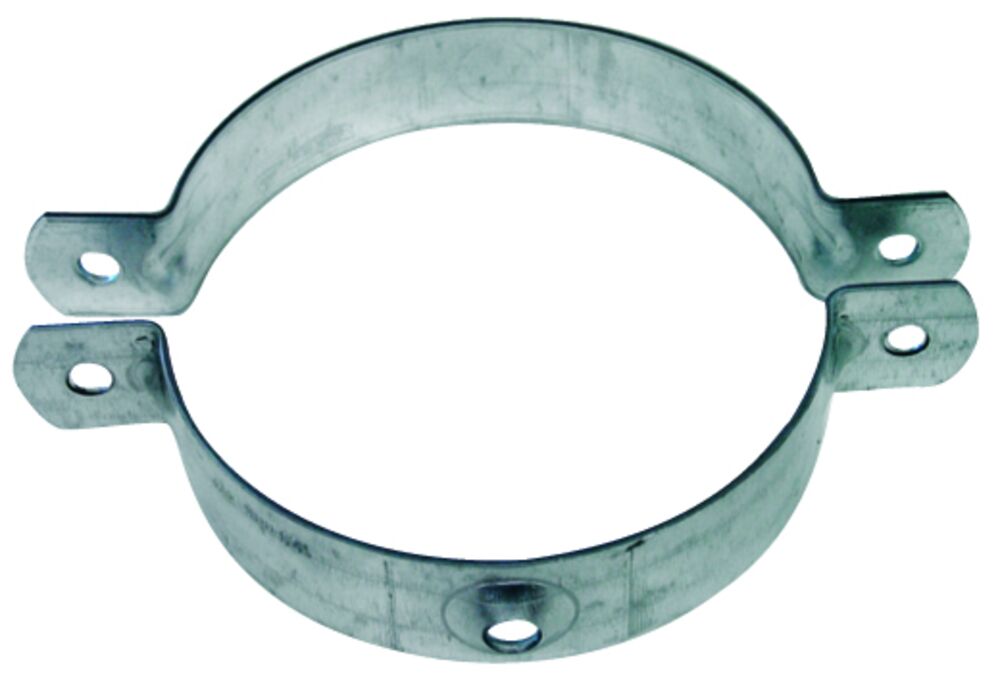

The Split Strap is used to mount Nordfab process ventilation duct. Ø80 -  1000 mm, galvanised steel, 304SS, or mild steel construction.

Nordfab Split Straps are designed for mounting Nordfab ductwork used in process ventilation, fume extraction, and dust collection systems. The suspension ring fits around the duct to enable hanging the duct using a rod.

• Available in galvanised steel, mild steel, or 304SS construction.
• Includes bolt and nut.
• Available in sizes Ø 080 mm -800 mm with 3,0 mm steel thickness.
